REFINERY SOLUTIONS

---

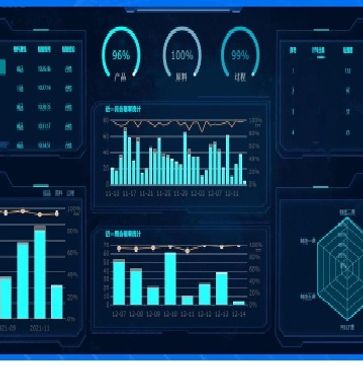

 Supcon InPlant SCADA software supports several network deployment methods such as C/S structure, B/S structure and stand-alone monitoring. According to different network planning and business requirements, you can deploy roles such as servers and clients on the same computer, or you can flexibly deploy each node on different computers on different networks. This can further support to applications like

Refinery Applciation

Pipeline SCADA

Oil & Gas SCADA

Terminal Automation SCADA

Wbfield ECS -700,  It supports up to 32 project management, 60 control domain and 128 operational domain management; and each domain can accommodate 60 stations. Each control station can handle 4,000 I/Os.

Webfield® JX-300XP ,   simplifies the industrial automation architecture, enhances reliability and efficiency, improves integrity and stability, and saves cost for the small to medium enterprises.  and cross-region data acquisition and control, mainly for oil & gas pipelines, rail transit etc

This can be used for all process logic implemention, Controlling and monitoring etc

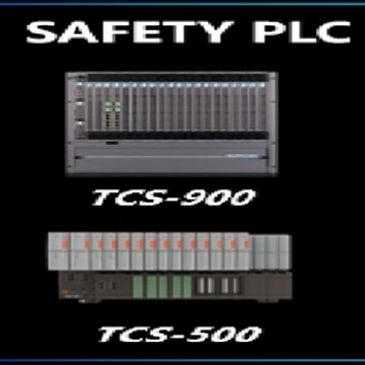

 Webfield® TCS-900  (SIL-3 offers a broad range of solutions to protect your people, properties and production process for various applications including Emergency Shutdown Device (ESD), Fire & Gas System (FGS), Compressor Control System (CCS), High Integrity Pressure Protection System (HIPPS), Burner Management System (BMS) in oil & gas, refinary & petrochemical, chemical, conventional and nuclear power, metallurgy and machinery, etc.

Thease safety system can be used for application like

Emergency Shutdown

Fire & GAS Applications

SIL2 / SIL3 Loop applications

Tank Farm Applciations

The digital transformation of industry is driving industrial control systems from closed to open and from isolation to collaboration. The integration of IT and OT has led to the interweaving and diffusion of industrial cybersecurity risks. Which will help to

Reduced cost of attacks

Vulnerable to DDoS attacks

Security strategies face challenges

Conflict between IT and OT

Increased the data protection difficulty

Increased risk of privacy data

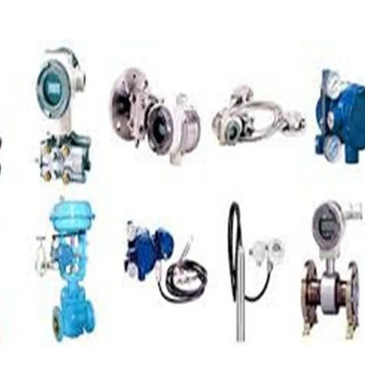

Wide Range of Prodcuts list are available , which can be used in all the process applications.

Major Products are:

Wired / Wireless Field Instruments (PT/TT/LT/FT)

Simulator of Source / Process Calibrator

Control Valves

Analyzer - Hubre- Netherland

Electrical cabinets / System

Paperless Recorder

Process Controller / Data Acquisition Unit

Electric Pneumatic Positioner

Pressure Guage

Smart Valve positioner / Pneumatic Positioner

Point Type GAS Detector

CCTV integration is available with any of the open system, which supports on Onevif protocol

CCTV system involves integrating software and hardware components to enhance security, improve monitoring efficiency, and enable real-time responses.

 Key Features of CCTV System

•  Motion Detection
•  AI-Based Object Recognition
•  Remote Access
•  Smart Alerts  &  Facial Recognition & Access Control
•  Integration with DCS/PLC System
• Not Wearing Safety Harness
• Feed Blocking Recognition
• Protective Clothing Detection

 System can be easily Inetgrated with Fire Alarm system

Fire alarm system automation involves integrating advanced technologies to detect and respond to fire hazards efficiently. Automated systems can perform tasks such as real-time fire detection, immediate alarm notifications, and triggering connected systems such as Smoke sensor, MCP, Heat Detector, Thermal Detector, Horn & Strobe, Hooters, etc.

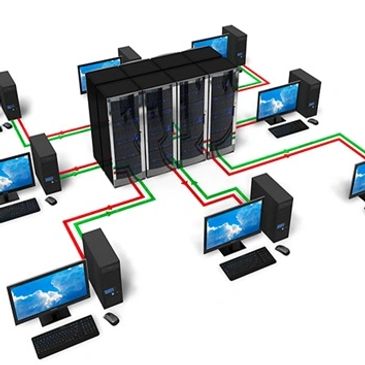

Network Management System (NMS) is used to monitor, manage, and maintain network infrastructure to ensure optimal performance, reliability, and security. It enables network administrators to oversee various network components such as routers, switches, servers, and endpoints. Here are its primary uses:

 Network Monitoring

 Fault Management

 Configuration Management

 Performance Management

 Security Management

TAS system involves many software module, and majorly conributes towards

•  Truck / Rail / Wagon Loading & Unloading for White OIL products, LPG, Black Oil Products, LNG, Solid Products etc
• Real-time tracking allowing stock levels optimization and forecast
• Integrated Control and Safety System (ICSS) solution  &  Process Automation
• Robust security protocols and protection systems against cyber threats
• Flexible and adaptable systems fit for evolving business and technology
• Efficient automated predictive maintenance system for resources optimization

Order management module  mainly used for

• Appointment Review, Online Order Processing in Advance
• Order interface service,  Order remote import, Order data maintenance, Order process review and Order preview statistics
• Disrtibuter, vehicle management, Qualification, limit value maintenance, Personnel Training Archive
•   Business orders are processed in advance to reduce the safety risk of hazardous vehicles and improve on-site efficiency

Meterin system mainly consists of

• Hardwares Such as Batch Controller , Mass/Vol/PD flow Meter, Digital Control valve, interlocking device like Earthing, RIT, Loading Alam Possiion sensor, Overspill Sensor, RTD, PT, Card reader etc
•   Tank truck driver management, Card Authorization, Bay / prodcut/ Quantity  Validation etc
• Safety of Loading/ Unloading Oeparions
• Calibrations and Accuracy of Loading data

 system helps to Identyfy the Automatich Number plate of Trucks

•  Logistics access control monitoring, factory entry authorization
• Entering vehicle license plate information, background related data information
• Loading and unloading vehicle management system
• Validity of orders and security checks
• Black and white list management of Trucks
•   Reduce human intervention, automatic order association and  Tank Truck safety association, and safe vehicle entry

It Takes care of:

• Reservation data entry, Truck reception control and Truck movement control
• Check of weight before loading and weigh Bridge Inetrface.
• Card Reader Interface, Batch controller Interface, Preset monitoring, Number of pumps control, Other sequence control, DDC control
• Loading data set to the TAS and Check of weight after Loading
• Bill of Loading  & Report of Loading data results and further integration with SAP/ERP system
