Control and Safety System

---

Supcon InPlant SCADA software enhances Control and Safety Systems by supporting various network deployment methods, including C/S structure, B/S structure, and stand-alone monitoring. Depending on your specific network planning and business requirements, you can deploy roles such as servers and clients on the same computer or flexibly assign each node to different computers across various networks. This flexibility further accommodates applications in the realm of Industrial Automation, such as Pipeline SCADA, Oil & Gas SCADA, Terminal Automation SCADA, General SCADA, and Pharmacy/Wa SCADA.

Wbfield ECS -700 supports up to 32 project management capabilities, 60 control domains, and 128 operational domain management, with each domain accommodating 60 stations. Each control station is designed to manage 4,000 I/Os, making it an integral part of Control and Safety Systems in industrial settings.

Webfield® JX-300XP simplifies the industrial automation architecture, enhancing reliability and efficiency while improving integrity and stability, ultimately reducing costs for small to medium enterprises. It also facilitates cross-region data acquisition and control, primarily for industries such as oil & gas pipelines and rail transit, showcasing its relevance in SCADA Systems.

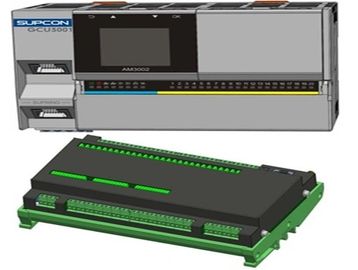

The GCS-G3, part of the Control and Safety Systems, features a highly compact design and a small-point stand-alone control. It supports field installation in various harsh environments, meeting the demands of high-density distributed applications in line with the industrial automation characteristics.

The GCS-G5, leveraging SCADA systems, adopts a UCP communication network with a full redundancy design and easy-to-use networking functions. It is suitable for decentralized sites, ranging from a single small device to projects that span across cities or regions.

The G3, designed with a highly compact structure and a small-point stand-alone control, is ideal for field installation in various harsh environments. This versatility allows it to effectively support high-density distributed applications, aligning perfectly with the requirements of Control and Safety Systems within the realm of Industrial Automation and SCADA Systems.

Webfield® TCS-900 (SIL-3) offers a comprehensive suite of Control and Safety Systems designed to protect your personnel, assets, and production processes across various applications. These include Emergency Shutdown Devices (ESD), Fire & Gas Systems (FGS), Compressor Control Systems (CCS), High Integrity Pressure Protection Systems (HIPPS), and Burner Management Systems (BMS) in sectors such as oil & gas, refining & petrochemicals, chemicals, conventional and nuclear power, as well as metallurgy and machinery. Our solutions integrate seamlessly with Industrial Automation and SCADA Systems to enhance operational efficiency.

The HD5500 (SIL3 Certified) series isolated barriers are specifically designed in accordance with the latest national standards for protecting electrical signals in hazardous areas, making them essential for Control and Safety Systems in Industrial Automation. Models available for the following I/O types include: Digital Input (Namur / Transistor), Analog Input (2/3 Wire) (HART), Analog Output (HART), Frequency/Pulse Input, Solenoid Driver, and Temperature Converter (RTD/Thermocouple), all of which integrate seamlessly into SCADA Systems.

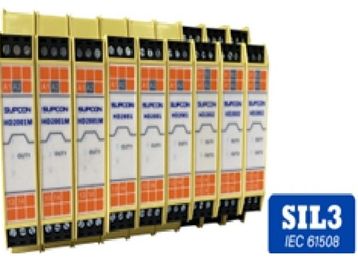

The HD2000 (SIL3 Certified) is designed for Control and Safety Systems, receiving a wide voltage range (16V~35VDC) to manage switch signals. It achieves a safe and reliable isolation circuit through advanced triple redundancy technology, automatic protection technology, and contact melting protection. With its capabilities, it supports both single-loop and double-loop operation, making it ideal for Industrial Automation applications. Additionally, the device features options like Single Channel SIL3 Relay, Single Channel SIL3 Relay (Ultra Slim), and Dual Channel SIL3 Relay, along with line/loop monitoring support, which is essential for SCADA Systems.

The SupX600 series interactive calibrator and communicator is a hand-held tool instrument designed for use in Control and Safety Systems within Industrial Automation environments. Featuring a capacitive full touch screen and a 1080P high-definition display, this product integrates an intelligent process calibrator and HART communicator. Its unique separable operation design allows the operation terminal to be separated from the main unit, enabling convenient on-site usage, particularly beneficial for SCADA Systems. Additionally, the following models are available: HART Calibrator and Process Calibrator.

The S Pro & P Pro series surge protection devices (SPD) are essential for providing surge protection for field equipment within Control and Safety Systems. These include sensors, transmitters, flow meters, solenoid valves, RTD, TC FF, APL field meters, APL field switches, and devices equipped with RS485 or RS232 interfaces. Additionally, they offer protection for I/O interfaces such as AI, AO, DI, DO, TI, and PI in PLC, DCS, FGS, and ESD control systems, which are crucial for Industrial Automation and SCADA Systems. Options are also available for surge protection for single-phase and three-phase applications.

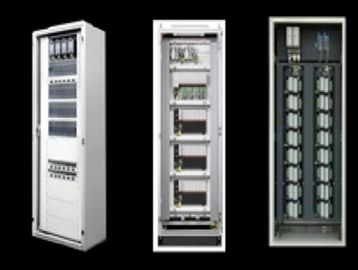

In this entire plant automation, all components fit into one cabinet. The software, designed for industrial automation, is cloud-based and fully digitalized. This integration of control and safety systems helps to reduce the need for cables and hardware on-site, streamlining the implementation of SCADA systems.

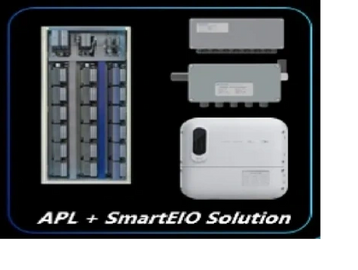

This simplified IO setup can be installed at the field site, enhancing the efficiency of Control and Safety Systems within Industrial Automation and SCADA Systems.
