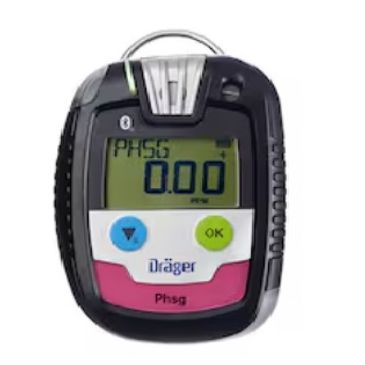

DRAGER MAKE PORTABLE Single-gas detectors

---

• Measurable gases  : CO, O2, H2S, SO2
• Lifetime : 2 Years
•  Temperature range  --40 Deg C to 55 Deg C
•  Changable filter : Easy to Change from outside / Mechanial connection

• Measurable gases  :  NO, CO2, Cl2, HCN, NH3, PH3, OV, OV-A, NO2 LC, Ozone, Phosgene
• Lifetime :Unlimited
•  Temperature range  --40 Deg C to 55 Deg C
•  Changable filter : Easy to Change from outside / Mechanial connection

• Measurable gases  :  CO H2-CP, CO/H2S, CO/O2
• Lifetime : Unlimited
•  Temperature range  --40 Deg C to 55 Deg C
•  Changable filter : Easy to Change from outside / Mechanial connection
• Dual Sensor : Yes

• Measurable gases  :  IR Ex/CO2, O2, CO, H2S, NO2, SO2 + (choice out of > 40 sensors)
• No of Gases : 1-6
• Sensor Technology:  IR + EC
• Application:  Personal Air Monitoring  and  Confined Space Entry
•  Operation time  : 12 Hr
•  Degree of protection (IP class)  : IP 67
•  Dual sensors : Yes
•  Internal pump : No
•  Bluetooth : No
•   Smart Configuraton in Dräger Gas Detection Connect : Yes

 The Dräger PEX 3000 transmitter detects flammable gases and vapours in concentrations below their lower explosive limit (100 % LEL). It helps you to increase the explosion protection of your plant. Its heat-tone sensor reacts to gas within just a few seconds, and the measurement signal remains particularly stable over the long term

 The Dräger PIR 3000 is an explosion proof infrared gas detector for continuous monitoring of combustible gases and vapors. Based on a stainless steel SS 316 enclosure as well as on a good measuring performance, this transmitter offers an excellent price-performance-ratio.

 ​The Dräger PIR 7000 is an explosion proof point infrared gas detector for continuous monitoring of flammable gases and vapours. With its stainless steel SS 316L enclosure and drift-free optics this detector is built for the harshest industrial environments, e.g. offshore installations.

  The Dräger Polytron 5200 CAT is a cost-effective, explosion-proof transmitter designed for detecting flammable gases and vapours. It uses the catalytic DrägerSensor Ex… DQ. Due to the 3-wire operation and the 4 to 20 mA analogue output, you can combine the transmitter with most evaluation systems in your gas detection system

 The Dräger Polytron 8200 CAT is an explosion-proof high-end transmitter designed for detecting flammable gases and vapours. It uses the catalytic DrägerSensor Ex… DQ. In addition to the 3-wire operation with a 4 to 20 mA analogue output, it also offers HART, fieldbus options and Modbus, allowing you to integrate the transmitter with most control systems in your gas detection system

  The Dräger Polytron SE Ex ... DQ sensing heads are gas detectors for the continuous monitoring of flammable gases and vapours in the ambient air. Measurement is based on the heat of reaction principle where a chemical reaction takes place in a catalytic bead (also known as a pellistor) inside the sensor.

  The Dräger Polytron® 5310 IR is a cost effective explosion-proof transmitter for the detection of flammable gases in the lower explosion limit (LEL). It uses an infrared DrägerSensor® IR that can be configured for methane, propane, or ethylene. A 3-wire 4 to 20-mA analogue output with relays makes it compatible with most control systems.

  The Dräger Polytron® 5700 IR is a cost effective explosion-proof transmitter for the detection of flammable gases in the lower explosive limit (LEL). It uses a high performance infrared Dräger PIR 7000 sensor that will quickly detect most common hydrocarbon gases. A 3-wire 4 to 20-mA analogue output with relays makes it compatible with most control systems.

   The Dräger Pulsar 7000 Series are stationary open path gas detectors for the detection of explosive hydrocarbons in gases and vapours. The robust design and the extremely rapid response time make the Dräger Pulsar 7000 Series a dependable solution for your requirements in the oil and gas industry, as well as the chemical industry.

    The Dräger VarioGard 2300 IR is a transmitter with a 4-20 mA output signal and integrated infrared sensor. It detects flammable gases such as methane and LPG in non Ex areas, such as underground garages and laboratories.

•  The Dräger Flame 1350 combines UV and IR sensors to detect hydrocarbon-based fires. These powerful sensors and complex algorithms provide increased safety and fewer false alarms.

 With its triple IR sensor, the Dräger Flame 1750 H2 detects hydrogen-based fires. It offers you high reliability against false alarms and its good measurement performance remains even at extreme temperatures.
