PRODUCTS LIST FROM OUR PARTNERS

---

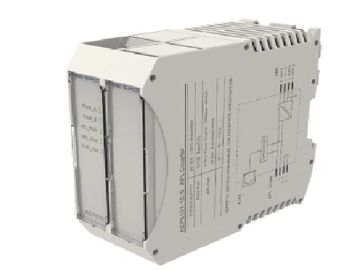

• APL Power Switch with 1 RJ45 &1 APL Trunk

• Redundant power input

• RJ45×1: 10/100Base-T(X)

• APL Trunk×1

• Port Class: TP3X, 57.5W

• Baudrate：10Mbps

• Distance：1000 Mtrs

• Managed Ethernet-APL Field Switch  8port and 1 2 ports with Junction Box

• Bus Powered

• APL Trunk×2

• Configurable for redundancy or independent

operation

• APL Spur×12

• 0.54W/Ch

• Junction Box Integrated，IP66

• Intrinsically safe Ex ic

• Installation in Zone 2

• Managed Ethernet-APL Power Switch

• RJ45×2

• 10/100Base-T(X)

• Configurable for redundancy or  independent operation

• SFP×2

• 100Base-F(X)

• Configurable for redundancy or independent operation

• APL Trunk × 8

• Port Class: TP3X, 57.5W/Ch

• Baudrate：10Mbps

• Distance：1000 Mtrs & Installation in Zone 2

Hardware Int erface：

2×APL Trunk

Trunk：

Interface：TP3X(2-wire pow er supp ly, 50V/57.5W )

Speed/Distance：10Mbps/1000 m

I/O Types：

AI/AI+HART/AO/AO+HART/DI/DO/NAMUR/PI，

Defined in so ftware

Channels：16

Operating Temperature：-40～70ºC

Installation：

Base mount （MB831-S01、MB831- E01 (Intrinsically safe)）

Hardware Int erface：

2×APL Trunk

2×RS-485

2×10M/100M BASE-T

1×SIM Card (4G、5G Optional)

Trunk：

Interface：TP3X(2-wire pow er supp ly, 50V/57.5W )

Speed/Distance：10Mbps/1000 m

Operating Temperature：-40～70ºC

Explosion-proof：Ex ec IIC T4 Gc/Ex tc IIIC T130℃ Dc

Protection：IP66

Installation：Flat bracket

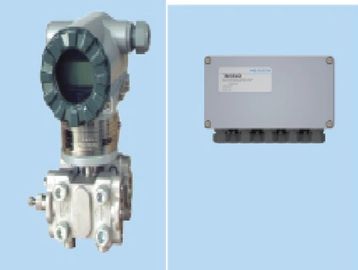

Wireless Pressure Tx

• CXT Series Pressure Transmitter

• TM Series Multi Channel Temperature

Transmitter

• HART(4~20mA), PROFIBUS-PA, FF or

APL Port Selectable

Wireless Temperature Tx

Interface：SLAA（2-Wire int rinsically safe pow er load）

Speed/Distance：10Mbps/200 m

Operating Temperature：-40～70ºC

Measured Variable：

Thermocouples, Ther mal Resistors, Resistors, Milliv volts

Input temperature signals: 8

Explosion-proof：Ex ia IIC T4 Ga

Protection：IP66

Installation：Flat bracket
